Bienvenidos a la seccion pedidos de VITERBI. En este sitio es totalmente seguro, ya que solo generamos su orden de pedido y con este puedan realizar su pago, por deposito bancario o transferencia electronica. Una vez realizado el pedido recibira por correo toda la información, sugerimos imprimirla para que tengan todos los datos completos.
AN-80i> Point-To-Point 4.9 Ghz Licensed, 5.2, 5.4 or 5.8 Ghz Unlicensed Bundle Prices |
|
Part Number |
Description |
Price (USD) |
Quantity |
 |
|
System Terminal Redline AN80i PTP with up to 9 Mbps. Radio Power 25dB , 10MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit).
|
$1,740.00 |
|
| |
80i01P18 - T49/T54/T58 |
System Terminal Redline AN80i PTP with up to 18 Mbps. Radio Power 25dB , 10MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit).
|
$ 1,840.00 |
|
| |
80i01P27 - T49/T54/T58 |
System Terminal Redline AN80i PTP with up to 27 Mbps. Radio Power 25dB , 10MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit).
|
$ 1,940.00 |
|
|
80i01P36 -T49/T54/T58 |
System Terminal Redline AN80i PTP with up to 36 Mbps. Radio Power 25dB , 10, 20 MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit).
|
$ 2,690.00 |
|
|
80i01P54 - T49/T54/T58 |
System Terminal Redline AN80i PTP with up to 54 Mbps. Radio Power 25dB , 10, 20 MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit).
|
$ 3,490.00 |
|
|
80i01P108-T49/T54/T58
|
System Terminal Redline AN80i PTP with up to 108 Mbps. Radio Power 25dB , 10, 20 & 40 MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit).
|
$ 3,990.00 |
|
| |
|
|
|
|
| |
|
|
|
|
RDL-2000 > Point-To-Point 4.9- 5.8 Ghz Operation Bundle Prices |
|
Part Number |
Description |
Price (USD) |
Quantity |
 |

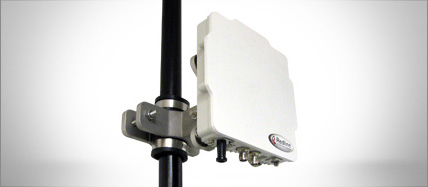

2K-T5X-SYS
|
Radio System: RDL-2000 broadband wireless infrastructure 5GHz system, 300 Mbps wireless data rate, 5,10, 20 & 40Mhz Channel, 22dBm Tx Power, AES-128 Wireless Encryption, supporting regions 4.9-5.8Ghz Operation, TDD (Time Division Duplexing) 2 x 2 MIMO.
Includes: (1) Radios w/ dual Connector Type N, mounting hardware & PoE injector.
|
$ 2,990.00 |
|
| |
|
|
|
|
| |
|
|
|
|
AN-80i> Point-To-Multipoint 4.9 Ghz Licensed, 5.2, 5.4 or 5.8 Ghz Unlicensed Bundle Prices |
|
| Part Number |
Description |
Price (USD) |
Quantity |
|
80i01S54 - T49/T54/T58 |
System Terminal Redline AN80i PMP Suscriber Station up to 54 Mbps. Radio Power 25dB , 10 & 20 MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit).
|
$ 1,610.00 |
|
|
80i01B18 - T49/T54/T58 |
System Terminal Redline AN80i PMP Sector Controller up to 18 Mbps. Radio Power 25dB , 10 & 20 MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit). |
$5,140.00 |
|
|
80i01B36 - T49/T54/T58 |
System Terminal Redline AN80i PMP Sector Controller up to 36 Mbps. Radio Power 25dB , 10 & 20 MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit). |
$ 6,140.00 |
|
 |
80i01B54 - T49/T54/T58 |
System Terminal Redline AN80i PMP Sector Controller up to 54 Mbps. Radio Power 25dB , 10 & 20 MHz Channel Size (Need Antenna, POE Inyector and Mounting Kit). |
$ 7,140.00 |
|
| |
|
|
|
|
| |
|
|
|
|
Sector Antenna |
|
| Part Number |
Description |
Price (USD) |
Quantity |
|
A6017EAS |
Sector Antenna: 60 degree, 17 dBi sector flat antenna, 4.9-5.9GHz, V polarization (mounting bracket required). |
$ 638.00 |
|
|
A9016EAS |
Sector Antenna: 90 degree, 16 dBi sector flat antenna, 4.9-5.9GHz, V polarization (mounting bracket required). |
$ 638.00 |
|
|
A12015EAS |
Sector Antenna: 120 degree, 15 dBi sector flat antenna, 4.9-5.9GHz, V polarization (mounting bracket required). |
|
|
|
A36009MMO |
Omni Directional Antenna: 14 degree elevation, 9 dBi omni antenna, 5.0-6.0GHz, V polarization (mounting bracket required). |
$638.00 |
|
| |
|
|
|
|
| |
|
|
|
|
Narrow Beam/Subscriber Antenna |
|
| Part Number |
Description |
Price (USD) |
Quantity |
|
A2209MTFD |
Antenna: 1 foot, 9 degree, 22 dBi flat panel antenna, 5.15-5.875GHz, V or H polarization (mounting bracket required). |
$119.00 |
|
|
A2209MTFW |
Antenna: 1 foot, 9 degree, 22 dBi flat panel antenna, 4.9-5.875GHz, V or H polarization (mounting bracket required). |
$ 119.00 |
|
|
A2212RWP - SP1-5.2 |
Antenna Radiowaves: 1 foot, 12 degree, 22 dBi parabolic antenna, 5.25-5.85GHz, V or H polarization (mounting bracket required). |
$ 470.00 |
|
|
A2804MTF |
Antenna: 2 foot, 4.5 degree, 28 dBi flat panel antenna, 5.15-5.875GHz, V or H polarization (mounting bracket required). |
$ 559.00 |
|
|
A2804MTFW |
Antenna: 2 foot, 4.5 degree, 28 dBi flat panel antenna, 4.9-5.925GHz, V or H polarization (mounting bracket required). |
$ 559.00 |
|
|
A2906PWP |
Antenna: 2 foot, 6 degree, 29 dBi parabolic antenna, 4.9-5.875GHz, V or H polarization (mounting bracket required) |
$ 559.00 |
|
|
A3204PWP |
Antenna: 3 foot, 4 degree, 32 dBi parabolic antenna, 4.9-5.875GHz, V or H polarization (mounting bracket required). |
$ 820.00 |
|
|
A2308MFD |
Antenna: 14-inch, 8 degree, 23dBi flat panel antenna, 4.9 - 5.8 GHz, dual-polarization |
$330.00 |
|
|
A2FT2906LTPD |
Antenna: 2 foot, 6 degree, 29dBi parabolic antenna, 4.9 - 5.8 GHz, dual-polarization |
$592.00 |
|
|
A3FT3204LTPD |
Antenna: 3 foot, 4 degree, 32dBi parabolic antenna, 4.9 - 5.8 GHz, dual-polarization |
$889.00 |
|
|
A2106RWP - SP2-5.2 |
Parabolic Antenna Radiowaves: 2 foot, 6.2 Degree, 28.0 dBi, Plane Polarized, 5.25 - 5.85 Ghz Range, Conector Type N Female. (T5x-BKT required) |
$747.00 |
|
|
A3104RWP - SP3-5.2 |
Parabolic Antenna Radiowaves: 3 foot, 4.2 Degree, 31.2 dBi, Plane
Polarized, 5.25 - 5.85 Ghz Range, Conector Type N Female. (T5x-BKT required) |
$1,580.00 |
|
|
A4103RWP - SP4-5.2 |
Parabolic Antenna Radiowaves: 4 foot, 3.4 Degree, 34.6 dBi, Plane Polarized, 5.25 - 5.85 Ghz Range, Conector Type N Female. (T5x-BKT required) |
$2,032.00 |
|
|
A6104RWP - SP6-5.2 |
Parabolic Antenna Radiowaves: 6 foot, 2.2 Degree, 37.6 dBi Plane Polarized, 5.25 - 5.85 Ghz Range, Conector Type N Female. (T5x-BKT required) |
$3,366.00 |
|
|
80i-LW-MNT |
Light-Weight Mounting Kit: Vertical mast mounting kit for
mounting AN-80i with A2209MTFD, A2209MTFW antenna, includes
9" RF cable assembly. |
$ 108.00 |
|
|
80i-HD-MNT |
Heavy-duty Mounting Kit: Vertical mast mounting kit for
mounting AN-80i with A2209MTFD, A2804MTF antenna or other dettached antenna mounting, includes
16" RF cable assembly. |
$ 222.00 |
|
|
RDL-MNT-ALU-01 |
Mount Kit Cast Aluminum RDL Stud Pattern 100mm (3.9in) with SS Fasteners, not include
RF cable assembly. |
$ 74.00 |
|
| |
|
|
|
|
| |
|
|
|
|
| |
|
|
|
|
Accessories |
|
| Part Number |
Description |
Price (USD) |
Quantity |
|
80i-POE-1A |
Power injector with single 10/100 Ethernet Data Port plus
single 10/100 Powered Ethernet Port. |
$ 142.00 |
|
|
PSA-POE-1D |
Power injector with single 10/100 Ethernet Data Port plus single 10/100 Powered Ethernet Port, Single DC Power input. |
$ 142.00 |
|
|
PPT-B |
Single AC Power cord: Type-B plug, applicable to the U.S. and Canada |
$ 3.00 |
|
|
80i-CAT5-100 |
Ethernet Category-5 Single Shielded Outdoor Cable: 100' (~30 m) with grounding RJ-45 Type connectors. |
$ 70.00 |
|
|
80i-CAT5-300 |
Ethernet Category-5 Double Shielded Outdoor Cable: 300' (~91 m) with grounding RJ-45 Type connectors. |
$ 210.00 |
|
|
ALLSXMME |
Polyphaser RF Lightning Protection Kit: one RF Lightning arrestor surge-side female, protected-side male N-Type connectors |
$ 128.00 |
|
|
LP-POET |
Polyphaser Lightning Protector: Outdoor lightning arrestor for protection damage caused by indirect lightning strikes. |
$ 273.00 |
|
|
RFN |
Spare RF Cable: 16" (~41 cm) RF cable with N-type connectors (for use with 80i-HD-MNT mounting). |
$ 72.00 |
|
|
NX460 |
Polyphaser Lightning Protector: Indoor POE lightning arrestor for protection damage caused by indirect lightning strikes. |
$ 135.00 |
|
|
LP-CMJ8-POE-B |
Lightning Protector: Outdoor lightning arrestor for protection damage caused by indirect lightning strikes.
|
$ 180.00 |
|
|
PD 4.9-6.0 2way |
Power Divider Outdoor: 1-In 2-way, 4.9-6.0 Ghz, N Female, 20W |
$ 195.00 |
|
|
CAB-RF-3P |
Cable RF 3 foot (~90cm) N Male- N Male LMR-400 |
$ 72.00 |
|
|
WK-U |
Universal weatherproofing kit (for 6 connectors) |
$ 37.00 |
|
| |
|
|
|
|
| |
